EVONOX — Integrated Brake System

The EVONOX Integrated Brake System is engineered as a complete braking architecture rather than a collection of components.
Built around a forged monoblock caliper with an internal oil circuit design, the system delivers consistent pressure distribution, improved thermal stability, and a structurally rigid braking response under load.

Each configuration is defined not only by size, but by its intended performance envelope — from balanced street use to high-capacity braking for heavier or higher-speed applications.

Architecture Overview

✔️ Forged monoblock caliper construction
✔️ Integrated internal oil channel design
✔️ Multi-piston layout for balanced clamping force
✔️ Two-piece floating disc configuration
✔️ Optimized heat dissipation and structural rigidity

System Configurations

E6 — Street Performance Configuration
Designed for responsive street driving with controlled braking modulation and reduced unsprung mass.

• 355 × 32 mm disc
• 380 × 32 mm disc
• Minimum wheel size: 18″ / 19″
• 6-piston caliper configuration

– Balanced for daily performance and spirited driving

E8 — High-Capacity Configuration
Developed for increased thermal load capacity and sustained braking performance under higher speeds or heavier vehicle platforms.

• 390 × 36 mm disc
• 410 × 36 mm disc
• Minimum wheel size: 19″ / 21″
• 8-piston caliper configuration

– Optimized for high-speed stability and extended braking cycles

Construction & Engineering

At the core of the EVONOX system is a forged one-piece caliper body, eliminating structural separation and ensuring a direct load path under braking.
The integrated oil passage design reduces external routing complexity while improving internal fluid distribution, contributing to consistent pedal feedback and predictable braking behavior.

Paired with a floating two-piece rotor system, the assembly allows controlled expansion under heat while maintaining disc alignment and braking efficiency.

Finish Options

• Brushed Silver
• Matte Black
• Anodized Gold

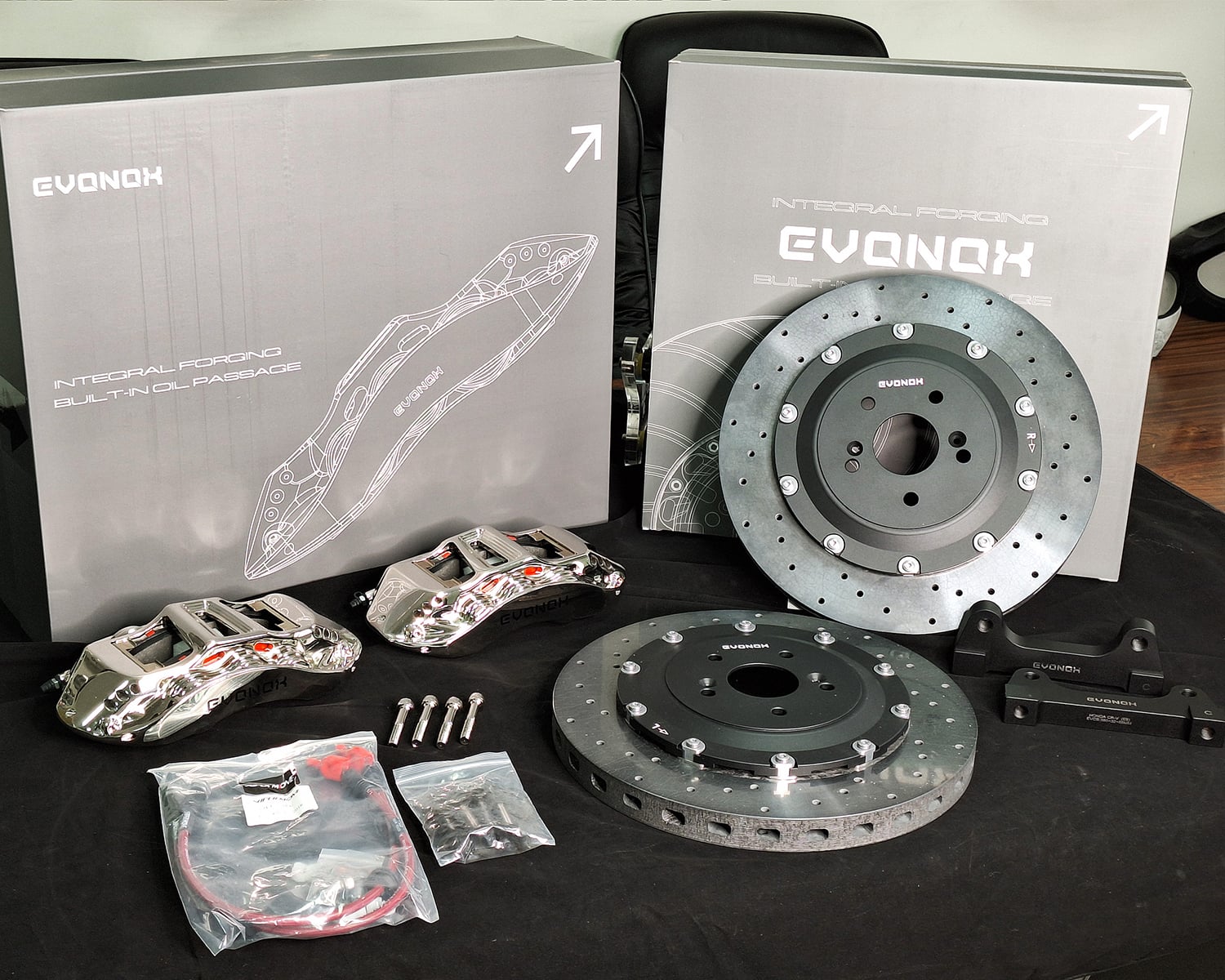

System Components

Each EVONOX brake system includes:

• Forged calipers (front set)
• Two-piece floating discs
• Mounting brackets
• Stainless steel brake lines
• Installation hardware

Positioning

The EVONOX system is not positioned as an accessory, but as an integrated performance solution — engineered to work alongside wheel fitment, vehicle dynamics, and overall chassis balance.

Technical Overview

A visual overview of SUPER MOVE brake system architecture, including rotor construction, caliper configurations, component integration, and reference specifications.
